TrussSistems™ QUATRO Series Part #: SL-QUATRO Price: $142.50


TrussSistems™ is comprised of modular aluminum components that combine to create nearly limitless configurations and is available in a variety of lengths from 0.5 m to 3 m (1.64 - 9.84 ft).

All TrussSistems™ sticks are TUV certified and are fabricated by SLV certified welders from 6082-T6 alloy aluminum.

TrussSistems™ products use a standard conical connection system which allows for quick assembly while maintaining sound structural stability. TrussSistems™ works seamlessly with other major brands that utilize the same conical connections.

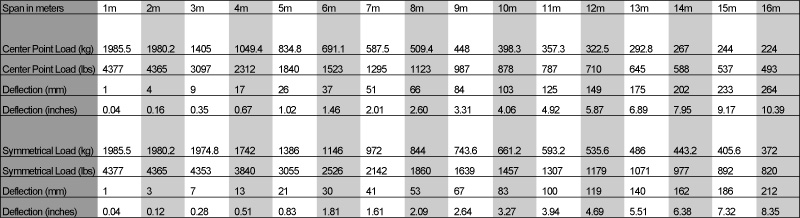

Truss Load Chart



Material: Alloy EN-AW 6082 T6

Tube Diameters:

  • Main Tubes (Chords): 50 x 2.0mm
  • Braces: 20 x 2.0mm

Available Segments:

  • 0.5m (1.64 ft.) Square
  • 0.75m (2.46 ft.) Square
  • 0.875m (2.87 ft.) Square
  • 1m (3.28 ft.) Square
  • 1.25m (4.1 ft.) Square
  • 1.5m (4.92 ft.) Square
  • 2m(6.56 ft.) Square
  • 2.15m (7.05 ft.) Square
  • 2.5m (8.20 ft.) Square
  • 2.75m (9.02 ft.) Square
  • 3m (9.84 ft.) Square


These items do not qualify for flat-rate FedEx Ground shipping. Depending on the size of the order, these items are shipped via UPS Ground or Freight. Exact shipping charges will apply.

Upon placing your order, you will be contacted by a customer service representative with a detailed quote prior to shipping. Feel welcome to call us with any questions: 1-800-791-7646


* NOTE: This product does not qualify for flat-rate shipping.  Exact shipping fees will be charged.  Please call us for more details or to obtain a freight quote.
